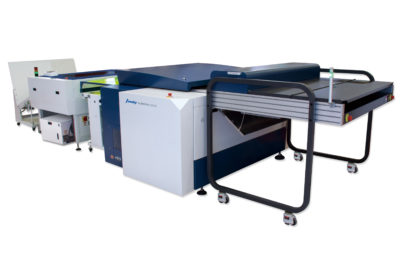

Amsky Aurora U8128

Amsky Aurora U8128 Kontaktirajte Nas

CTP specialized in high-speed commercial and newspaper printing

Opis proizvoda

Maksimalna veličina ploče: 1.163 × 940 mm

Značajke: Manje potrošnja energije, visoka stabilnost i savršena kvaliteta ispisa.

U usporedbi s termalnom pločom, primjenjiva UV (CTCP) offset-ploča može značajno smanjiti troškove. S 128-kanalnim laserom, Amsky Aurora U8128 osvjetljava 70 ploča / sat pod rezolucijom od 1200 dpi. (45 ploča / sat sa rezolucijom 2400 dpi).

U kombinaciji sa autoloaderom, procesorom i stackerom, serija AMSKY Aurora U8128 može raditi
potpuno automatski.

Za upravljanje cijelim procesom potreban je samo jedan operater.

AMSKY Aurora U8128

Technical specifications

Model U8128 U8128N
Exposing Method External Drum
Imaging System 128-channel
Discrete 405nm laser
Output Speed 45 plates/hour 70 plates/hour
1,030×800mm, 2,400dpi 745×605mm, 1,200dpi
Plate Size Max. 1,163×940 mm, Min. 300×400 mm
Plate Thickness 0.15mm – 0.3mm
Resolutions 2,400dpi 1,200dpi
Repeatability 0.01mm
Interface USB2.0 / USB3.0 ( USB2.0 is recommended )
Plate Loading Manual or automatic with autoloader
Net Weight 1,200KG
Device Size 2,127×1,610×1,058mm( L×W×H ）
Power supply Single phase: 220V, Max power(Peak value): 4KW
Environment Operating temperature range:15-30℃ Recommended temperature:21-25℃ Humidity:<70%
