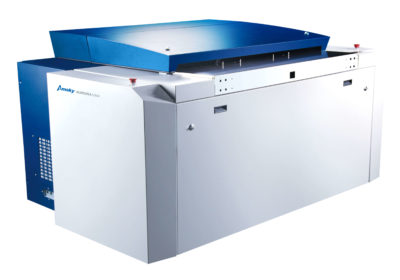

Amsky Aurora 800


Aurora 800 Kontaktirajte Nas

CTP specialized in large commercial quick printing

Maximum size of plate. 1130mm*920mm.

Features: Less manpower high stability and perfect output quality.

UV plate and thermal plate are available for you to lower production cost.

Furthermore to improve the production efficiency 32 channels, 48 channels and 64 channels laser are provided according to different printing speeds.

Working with autoloader processor and stacker AMSKY Aurora 800 series can achieve full-automatic printing.Only one operator is needed to finish the whole output process.


Amsky Aurora 800

Technical specifications

Model U832 U848 U864 T832 T848 T864
Exposing Method External Drum
Imaging System 32-channel 48-channel 64-channel 32-channel 48-channel 64-channel
Discrete 405nm laser Discrete 830nm laser
Output Speed 16 plates/hour 22 plates/hour 28 plates/hour 16 plates/hour 22 plates/hour 28 plates/hour
1,030×800mm  2,400dpi
Plate Size Max. 1,163×940mm, Min. 300×400mm
Plate Thickness 0.15mm- 0.3mm
Resolutions 2,400dpi , 1,200dpi (Option)
Repeatability 0.01mm
Interface USB2.0 / USB3.0   ( USB2.0 is recommended )
Plate Loading Manual or automatic with autoloader
Net Weight 1,200KG
Device Size 2,127×1,610×1,058 mm( L×W×H
Power supply Single phase:220V, Max power(Peak value): 4KW
Environment Operating temperature range:15-30℃ Recommended temperature:21-25℃ Humidity:<70%
