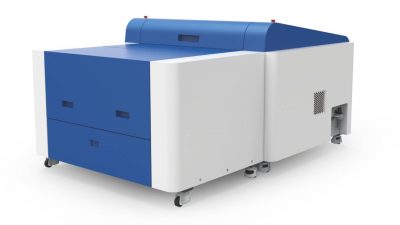

Laserska glava sa 256 kanalnim laserom
Izlazna brzina (ovisno o modelu) 35-55 ploča / sat（format 1.030 × 800 mm)
Osjetljivost ploče: 100mJ / cm² sa 2400dpi.
Kvadratnom tehnologijom osvjetljavanja, zasićenost se povećava za 21%, a finoća i preciznost se povećava deset puta.
Stroj je opremljen linearnim magnetnim motorima visoko preciznog pozicioniranja čime se postiže dulji vijek trajanja i niži troškovi održavanja za kupca.
| Model | T256-8/F3 | T256-8/F4 | T256-8/F5 | T256-6/F4 | T256-6/F5 | T256-6/F7 |
|---|---|---|---|---|---|---|
| Exposing Method | External Drum | |||||
| Imaging System | 825nm laser | |||||
| Max. Output Speed | 35 plates/hour | 45 plates/hour | 55 plates/hour | 42 plates/hour | 56 plates/hour | 72 plates/hour |
| 1,030×800mm, plate sensitivity: 100mJ/cm² | 780×660mm, Plate sensitivity: 100mJ/cm² | |||||
| Plate Size | Max. 1,163×940mm, Min. 400×300mm | Max. 800×660mm, Min. 300×300mm | ||||
| Plate Thickness | 0.15mm – 0.3mm | |||||
| Resolutions | Standard: dual resolutions 2,400dpi and 1,200dpi, or 2,540dpi and 1,270dpi (Option) Variable high resolution option: maximum up to 12,800dpi at fast scan direction |
|||||
| Repeatability | ±0.01mm | |||||
| Interface | Optical Fiber (Fiber Way) | |||||
| Plate Loading | Standard single cassette unit, Multiple cassette unit (MCL-8) or large-capacity (single) cassette unit (APL-8) | Single cassette unit | ||||
| Plate Loading Quantit (0.27mm Plate) | Standard single cassette unit: 100 plates Multiple cassette unit (MCL-8): 400 plates (4×100 plates/cassette) Large-capacity autoloader (APL-8):1200,1500,2000 plates(optional) |
100 plates | ||||
| Punching System | Option: Internal punching (Five sets of plate holes) | Option: Internal punching (Three sets of plate holes) | ||||
| Net Weight | CTP with Single cassette unit: 1,250KG CTP with Multiple cassette unit: 1,650KG |
1,000KG | ||||
| Device Size | CTP with Single cassette unit: 1,900×2,431×1,341mm( L×W×H ) CTP with Multiple cassette unit: 1,900×2,687×1,331mm( L×W×H ) |
1,536×1,971×1,341mm( L×W×H ) | ||||
| Power supply | CTP with Single cassette unit: Single phase: 220V, Power: 5KW(Peak value), 2KW (Average) CTP with Multiple cassette unit: Single phase: 220V, Power: 6KW(Peak value), 2.5KW (Average) |
Single phase: 220V, Power: 4.5KW(Peak value), 2KW(Average) | ||||
| Environment | Operating temperature range:15-32℃ Recommended temperature:21-28℃ Humidity:<70% | |||||
